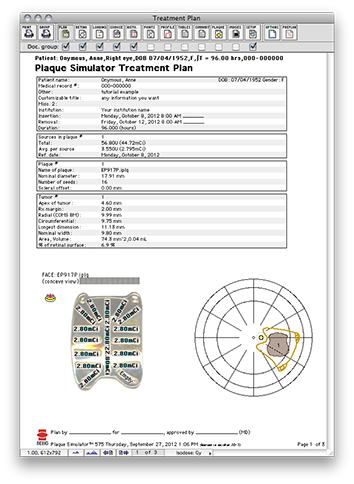

The Documents Preview Window

TreatmentPlanDoc

All printed documents can be previewed and printed from this window. Use the buttons along the top of the window or Documents menu the to select a document to preview.


Upper Control Group

The buttons along the top of the window select the document to preview:

DiagramControlsTumor
  • Print - prints only the document currently being viewed.
  • Group - prints the group of documents indicated by the Doc. group checkboxes below. The document group members can be preset in the Preferences dialog.
  • Plan - Preview the treatment plan document.
  • Retina - Preview the retinal diagram document.
  • Loading - Preview the loading diagram document.
  • Isodose - Preview the isodose plot document.
  • DVH - Preview the dose volume histogram document.
  • Points - Preview the user defined points document.
  • Profile - Preview the dose profile document.
  • Tables - Preview the dose tables document.
  • Summary - Preview the summaries document.
  • Plaque - Preview the plaque window document.
  • Image - Preview the image window document.
  • Setup - Preview the setup window document.
  • Doc. group: - these checkboxes mark documents for group printing. For instance, use group printing to create a single .pdf file containing all of the selected documents.

Footer Buttons
DiagramControlsZoom
  • Window size - Opens the Window Size Dialog dialog.
  • Zoom out - minify the document preview.
  • Zoom in - magnify the document preview.
  • Prev. page - show previous page of a multiple page document.
  • Next page - show next page of a multiple page document.
  • Isodose units - sets the isodose line display units for this window.
