The Retinal Diagram can be a 1 or 2 page document.

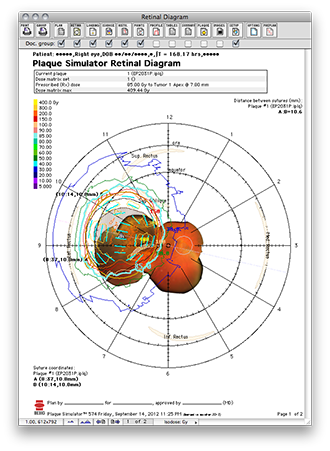

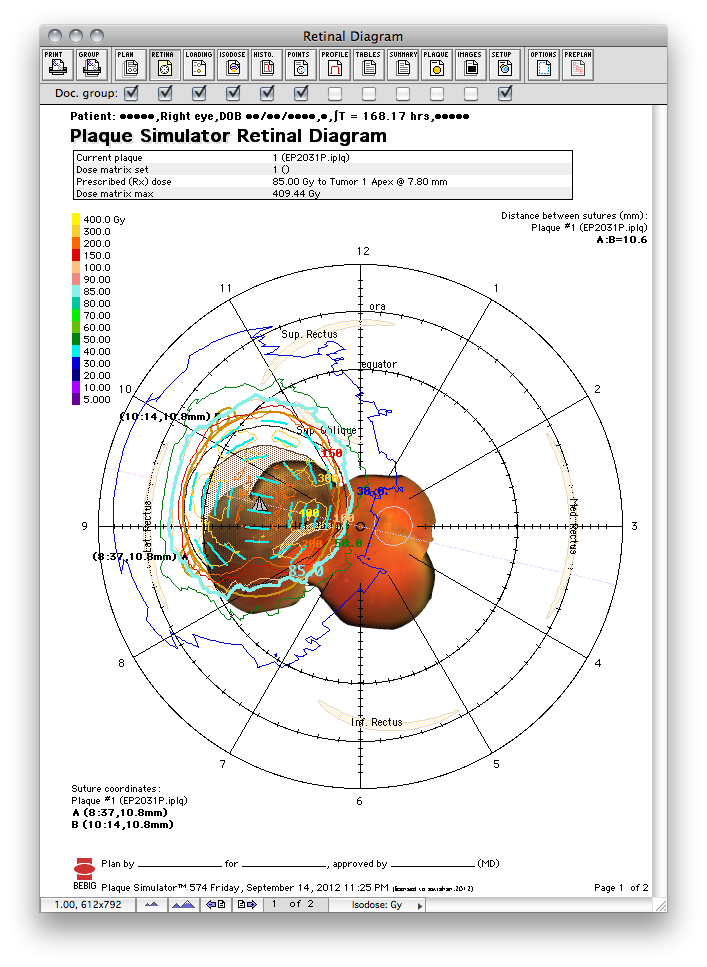

• Page 1 summarizes which eye, the tumor location, the intended plaque location and orientation, scleral suture coordinates (ie meridian hour and chord distance from the limbus), and the chord distance(s) between the suture eyelets of the plaque. This document provides a "road map" for the ophthalmologist during the implant surgery and should always be printed.

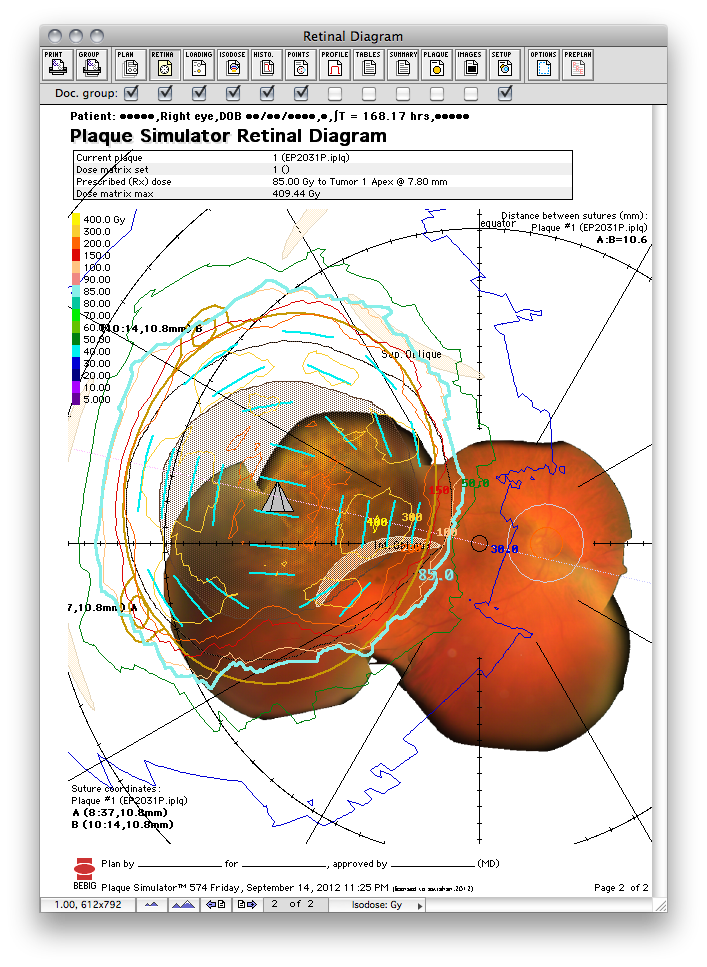

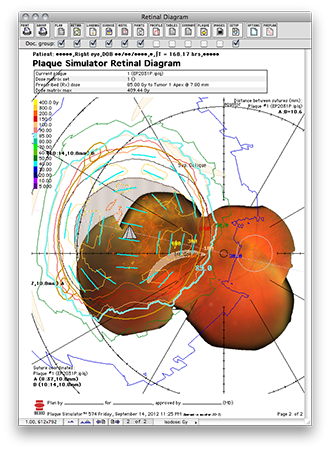

• Page 2, if enabled, can provide an enlarged view of the macular region by reproducing the view created in the retinal diagram window.
• The page advance buttons along the bottom of the window change the page being previewed.

• The print buttons at the upper left of the window initiate either single document or document group printing.
• The checkboxes below the document selection buttons at the top of the window indicate which documents will be included in group printing.

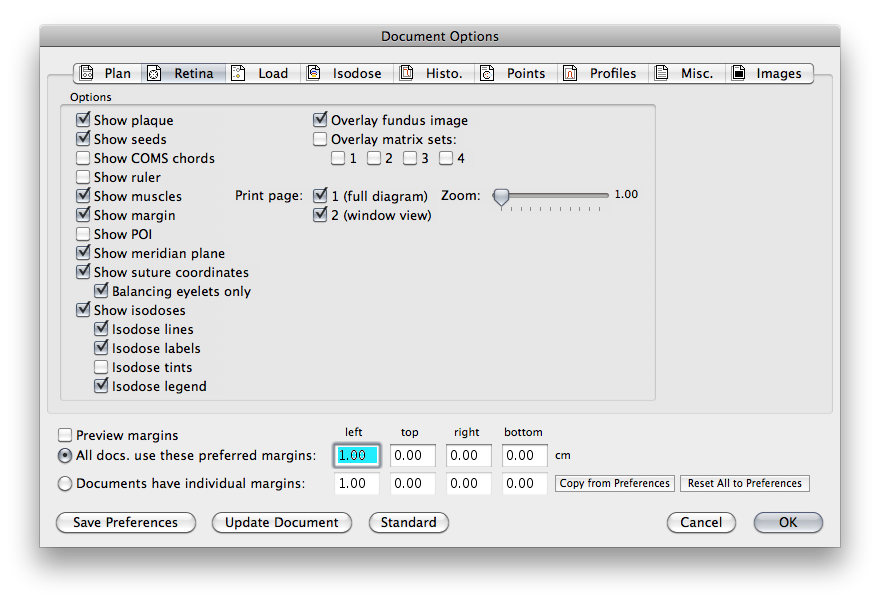

• You can customize a document by clicking the Options button, by double-clicking in the middle of the document window, or by selecting any of the Document Options... menu items.
