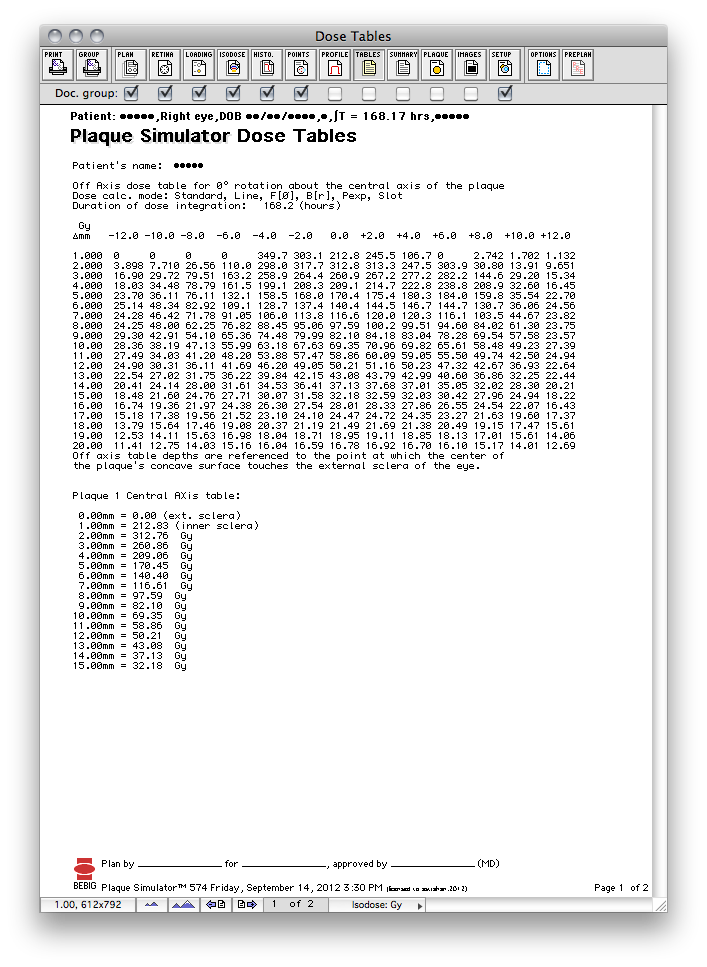

DoseTablesPage1

Click to enarge.

DoseTablesPage2

Click to enarge.


The Dose Tables document has 2 pages. This document is used to print various program data and calculations for QA and debugging purposes, and to compare calculations with other treatment planning and modeling software.

  • Page 1 - Dose in a plane perpendicular to the plaque face that contains and rotates around the central axis of the plaque.
  • Page 2 - Various plaque loading and perimeter properties.

  • The print buttons at the upper left of the window initiate either single document or document group printing.
  • The checkboxes below the document selection buttons at the top of the window indicate which documents will be included in group printing.
  • You can customize a document by clicking the Options button, by double-clicking in the middle of the document window, or by selecting any of the Document Options... menu items.
DocOptionsMisc
