LoadingDiagramPage1

Click to enarge.

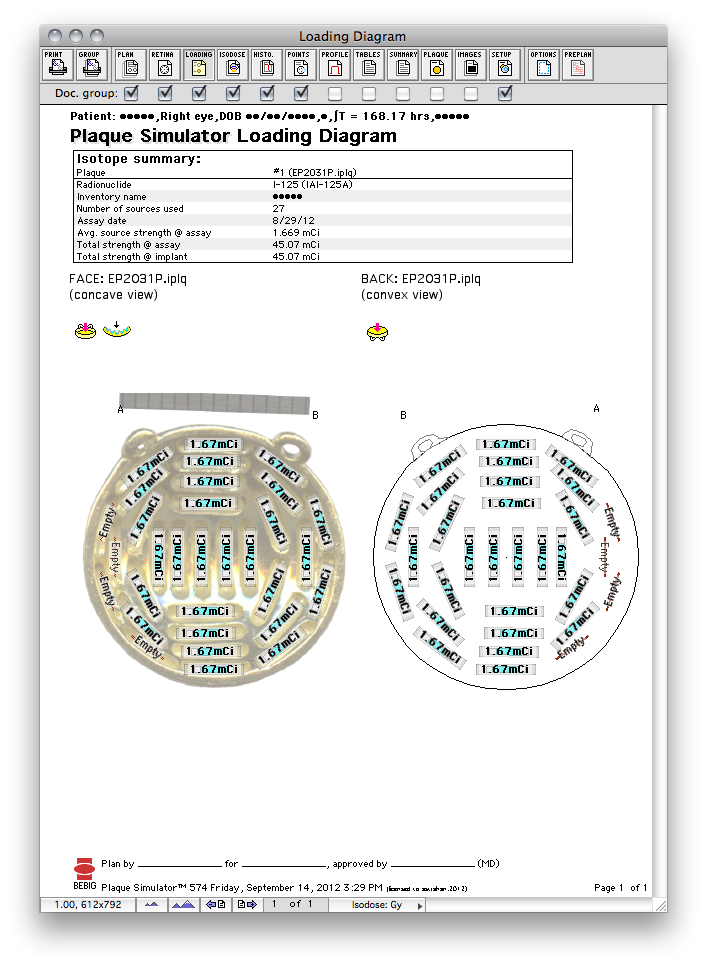

The Loading Diagram is a single page document.

  • Page 1 prints facial and back views of the plaque that illustrate where each source is to be inserted or glued and the strength of that source at the scheduled time of implant. This is the most important document to provide to the person or company (e.g. IsoAid) that will assemble the plaque.

  • The print buttons at the upper left of the window initiate either single document or document group printing.
  • The checkboxes below the document selection buttons at the top of the window indicate which documents will be included in group printing.

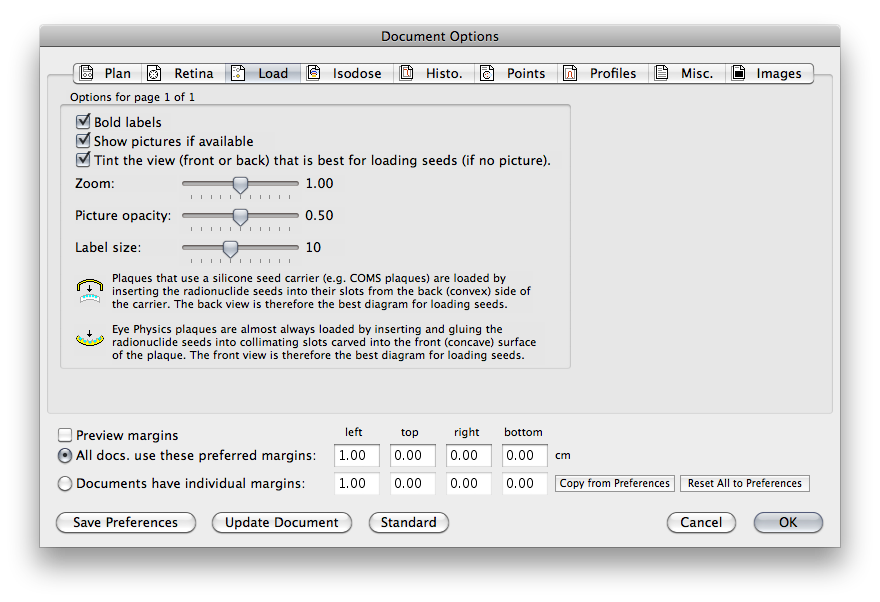

  • You can customize a document by clicking the Options button, by double-clicking in the middle of the document window, or by selecting any of the Document Options... menu items.
DocOptionsRetina
