Image Set

Click images to enarge.

ImagesPage1
ImagesPage2
ImagesPage3
ImagesPage4
ImagesPage5
ImagesPage6
ImagesPage7
ImagesPage8
ImagesPage9

The Images document prints between 1 and 22 pages. You can choose which images to print from the document preferences pane. The images are scaled to the width of the paper, ruler and tool overlays match the display settings of the Image window. Smaller size versions of these images are also printed on pages 3 and 4 of the treatment plan document. In the treatment plan and MPR versions the ruler and tool overlays are enabled by default. The set of images that can be printed include:

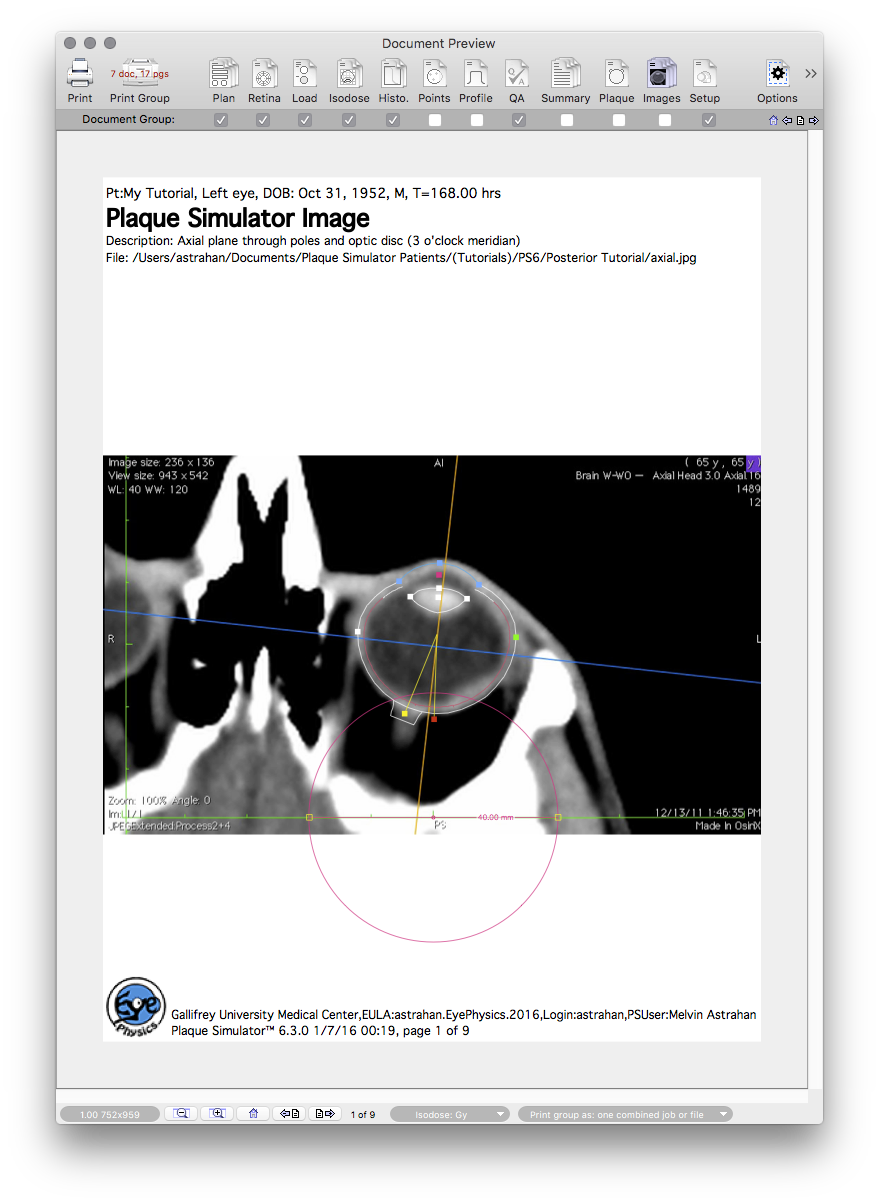

  • Image window axial image.
  • Image window equatorial coronal image.

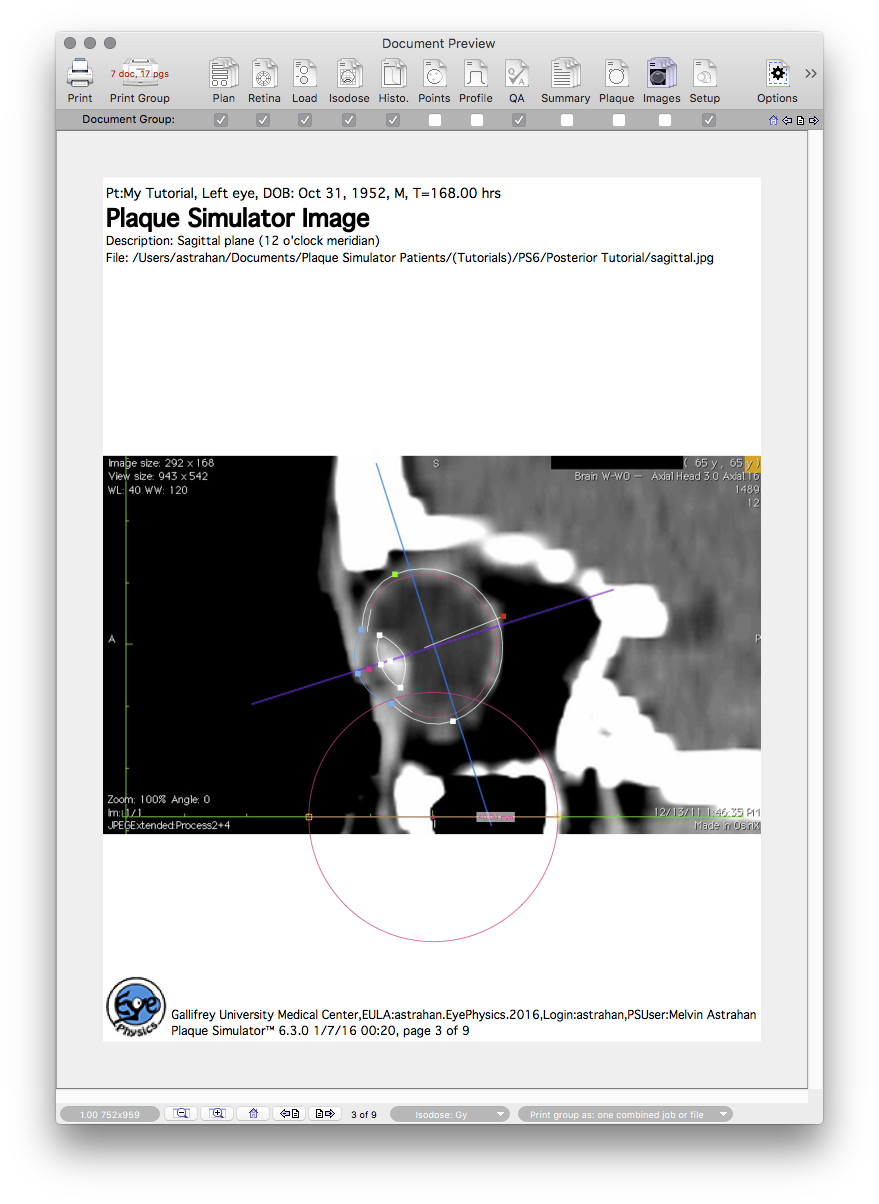

  • Image window sagittal image.
  • Image window tumor-coronal image.
  • Image window tumor-meridian image.
  • Image window nerve-coronal image.

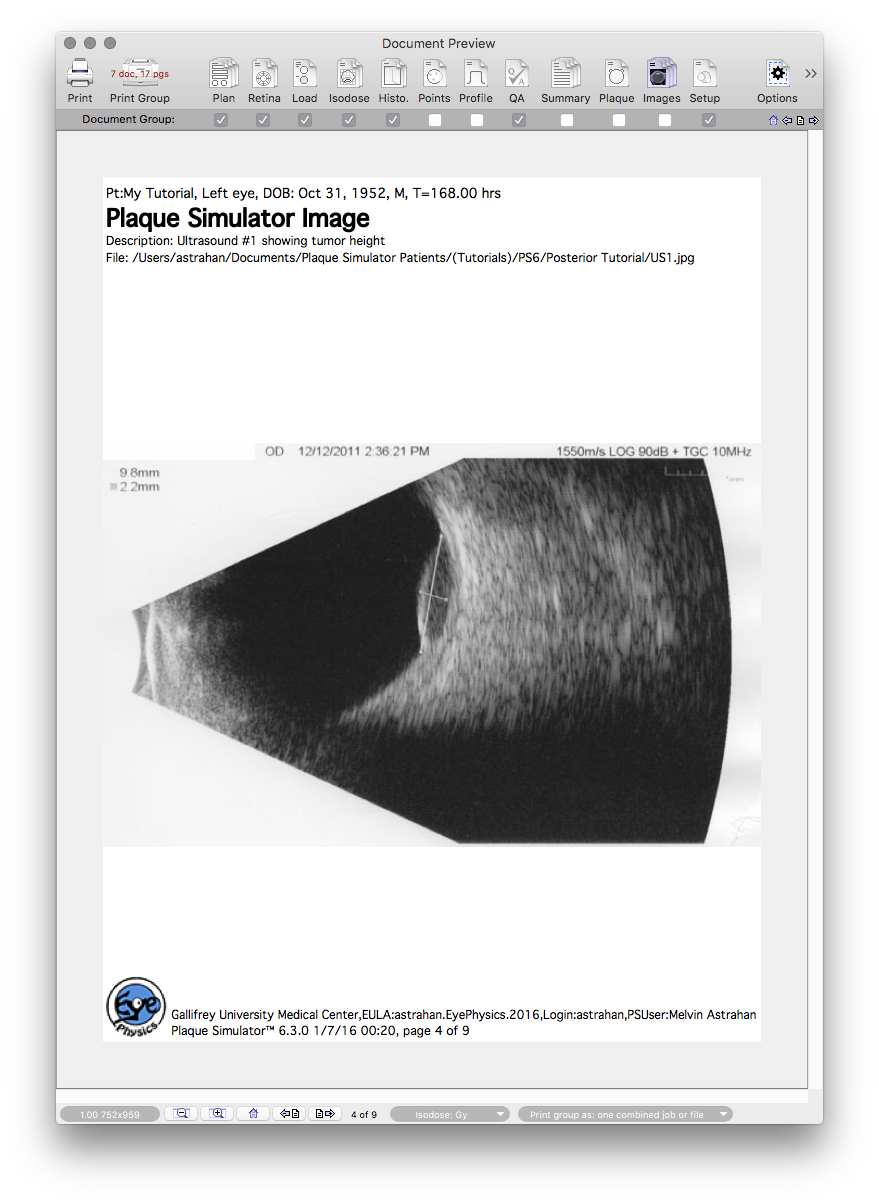

  • Image window ultrasound image #1.
  • Image window ultrasound image #2.
  • Image window fundus collage.
  • Image window eye iris picture.
  • Image window miscellaneous picture #1.
  • Image window miscellaneous picture #2.
  • Image window miscellaneous picture #3.
  • Image window miscellaneous picture #4.
  • Image window miscellaneous picture #5.
  • Image window miscellaneous picture #6 (or the nerve-axial image if it was named "n-axial").
  • MPR window axial reconstruction.
  • MPR window equator reconstruction.
  • MPR window sagittal reconstruction.
  • MPR window tumor-coronal reconstruction.
  • MPR window tumor-meridian reconstruction.
  • MPR window nerve-coronal reconstruction.
  • MPR window posterior centric spheroidal surface reconstruction.
  • MPR window anterior centric spheroidal surface reconstruction.
  • The print buttons at the upper left of the window initiate either single document or document group printing.
  • The checkboxes below the document selection buttons at the top of the window indicate which documents will be included in group printing.

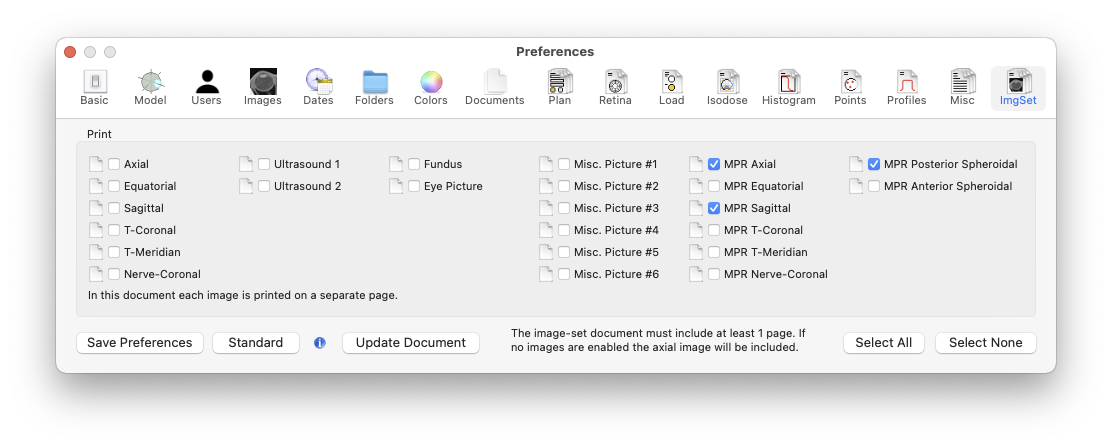

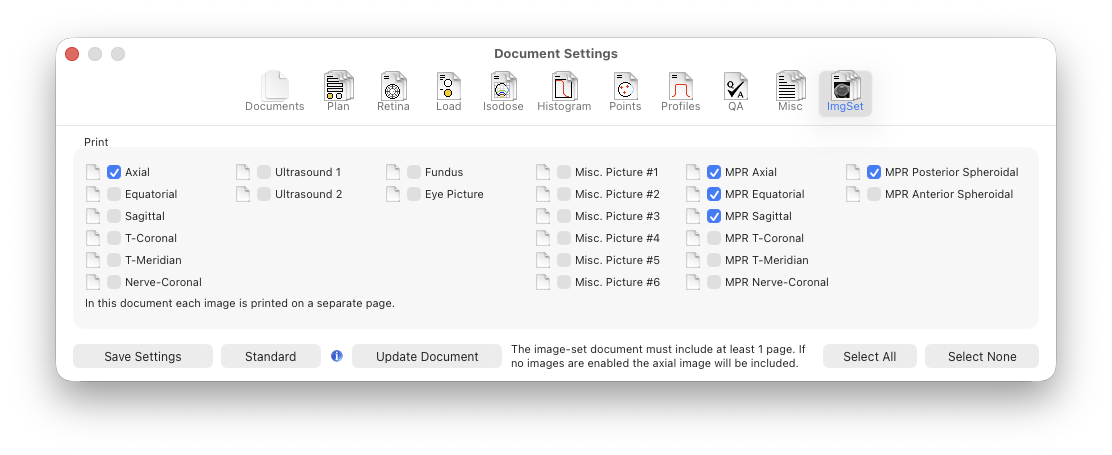

  • You can customize a document by clicking the Options button, by double-clicking in the middle of the document window.
DocOptionsImages
