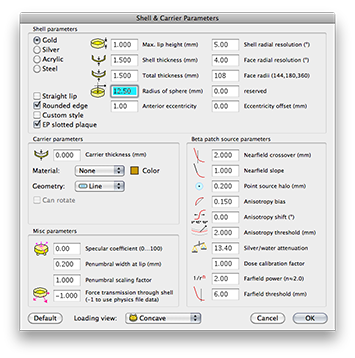

Shell and seed carrier properties are set in this dialog. These values should only be changed when designing a new model of plaque. Beta patch source values can also be viewed and edited here without going through the normal calibration procedure. The preferred loading view is set at the bottom of the dialog. For example, seeds are loaded into slots carved in the face (concave side) of an Eye Physics plaque, whereas seeds are loaded into the Silastic COMS carrier from the convex side.
|

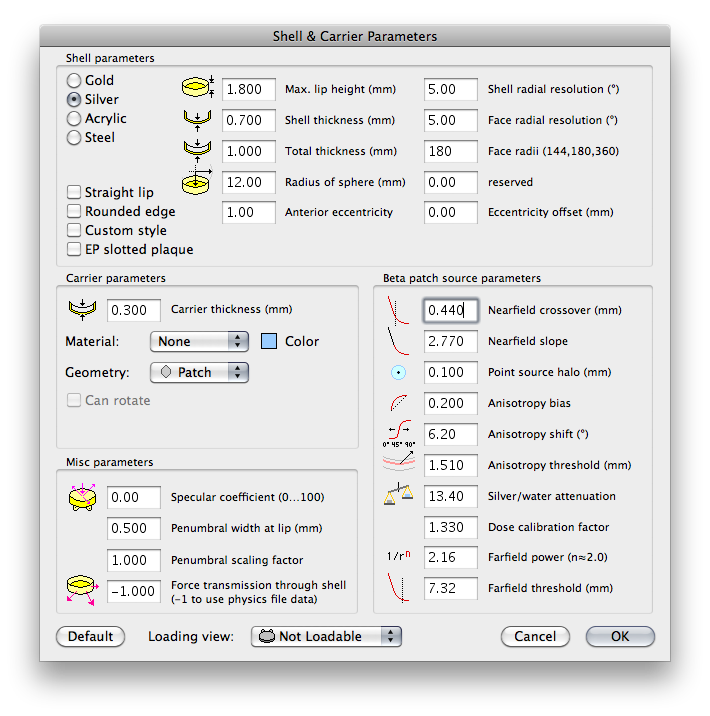

These are typical shell and carrier parameter settings for a BEBIG plaque.
|
|
