Retina Isodose Labeling Options

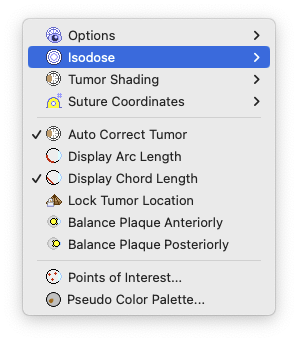

From the Diagram menu:

Isodose
IsodoseOptionsMenu
  • Show Labels - when checked, isodose line are labeled.
  • Label Backing - when checked, labels are drawn over a translucent backing for better visibility.
  • Label Clustering - Adjust the spacing between isodose labels.
  • Label Spread - Gravitate isodose labels towards the center of the diagram.
  • Font - Select a font to use for isodose labels.
  • Style - Select a text style for isodose labels.
  • Size - Select a text size for isodose labels.
  • Format - Select a numeric format for isodose labels.

Label Clustering

When a new isodose label is about to be printed, the area it will occupy is tested for collision with the area occupied by previously drawn labels plus a small surrounding margin for each label. If the new label will overlap an existing label, the new label's printing position is shifted along the isodose line until an unoccupied area is found.

Note: the interactive labeling sliders are easier to access than these menu items.

LabelClusteringMenu
  • Default - Apply the preferences setting. If checked, the current setting equals the preference setting.

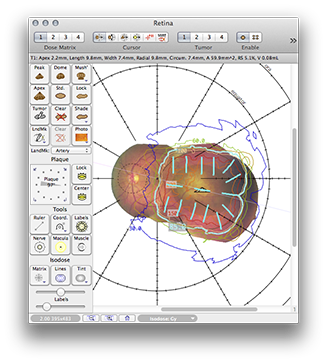

  • Tightest - Sets the margin to 4 pixels. If checked, the current setting is < 6 pixels.
  • Tight - Sets the margin to 8 pixels. If checked, the current setting is >= 6 and < 10 pixels.

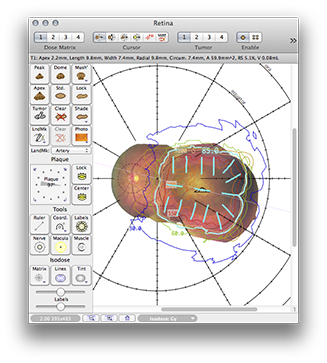

  • Medium - Sets the margin to 12 pixels. If checked, the current setting is >= 10 and < 14 pixels.
  • Loose - Sets the margin to 16 pixels. If checked, the current setting is >= 14 and < 18 pixels.

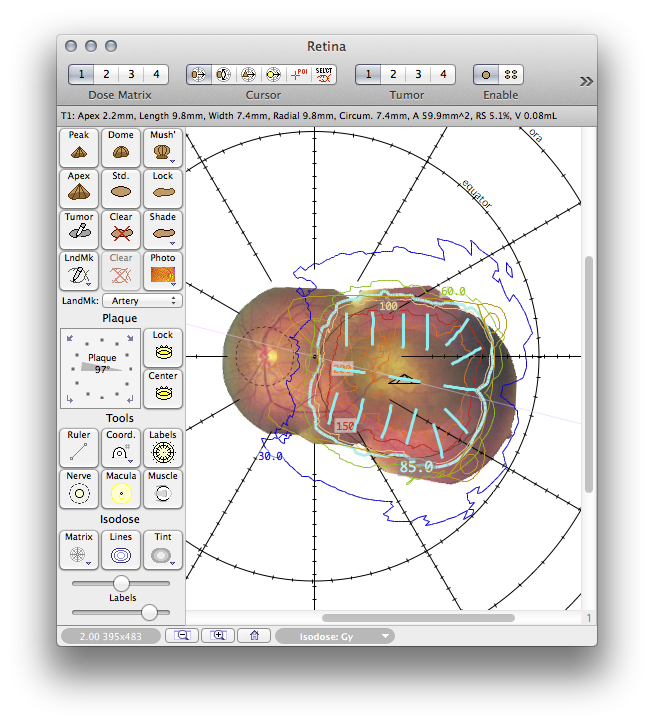

  • Loosest - Sets the margin to 20 pixels. If checked, the current setting is >= 18 pixels.
Tightest

Tightest

Medium

Medium

Loosest

Loosest


Label Spread

When an isodose curve is plotted, potential labeling points are cached and sorted by distance from the center of the retinal diagram. A narrow setting tends to pull those labels towards the center of the diagram.

Note: the interactive labeling sliders are easier to access than these menu items.

LabelSpreadMenu
  • Default - Apply the preferences setting. If checked, the current setting equals the preference setting.
  • Narrowest - Sets the offset to 0.05. If checked, the current setting is < 0.10.
  • Narrow - Sets the offset to 0.25. If checked, the current setting is between 0.1 and < 0.35.
  • Medium - Sets the offset to 0.50. If checked, the current setting is between 0.35 and < 0.65.
  • Wide - Sets the offset to 0.75. If checked, the current setting is >= 0.65 and < 0.90.

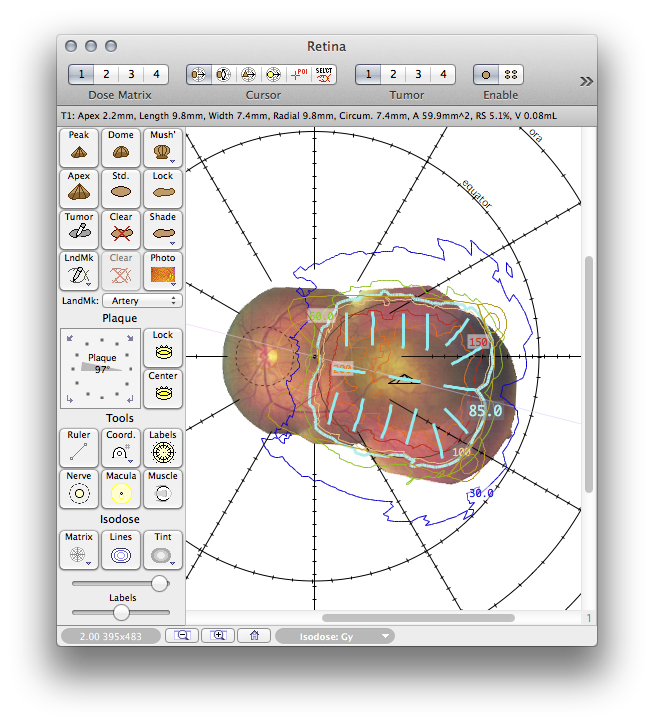

  • Widest - Sets the offset to 0.95. If checked, the current setting is >= 0.90.
Narrowest

Narrowest

Medium

Medium

Widest

Widest


Font

Select a font to use for the isodose labels.

  • The default font for isodose labels is 'Monaco'.
  • The default size for isodose labels is 10 pts.
FontMenu

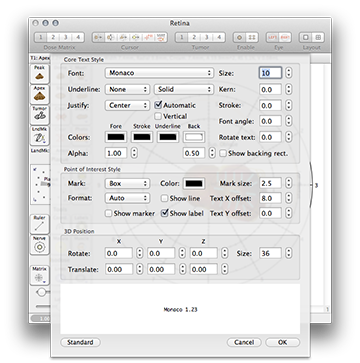

CustomStyle

Custom


Style

Select a text style for isodose labels.

  • The default is Bold.
  • Specific formats can be useful when preparing screen captures for publication or teaching purposes.
StyleMenu


Size

Select a text size for isodose labels.

  • The default is 10 point.
  • Larger sizes can be useful when preparing screen captures for publication and teaching.
StyleMenu
CustomStyle

Other


Format

Select a numeric format for isodose labels.

  • The default is Auto.
  • Specific formats can be useful when preparing screen captures for publication or teaching purposes.
FormatMenu
