The tumor appearance menu in the Setup Appearance window offers several options for modeling and displaying the tumor.

TumorRenderMenu

This group of items selects the 3D rendering method

  • Translucent - the tumor surface is rendered translucently.
  • Opaque - the tumor surface is opaque.
  • Edges - the tumor surface is drawn in wireframe.
  • Texture - the fundus photo collage is applied to the tumor surface as an OpenGL texture.

This group of items selects the shape of the tumor

  • Peak - the tumor has a conical shape, sloping linearly from its apex to the perimeter at its base.
  • Dome - the tumor is dome shaped, this is the default appearance.
  • Mushroom - the tumor is shaped like a mushroom or ball.
  • Custom Shape... - opens the tumor shape parameters dialog to customize the shape.
TumorMushroomDialog

These parameters deform the basic dome shape.


Examples of tumor appearance

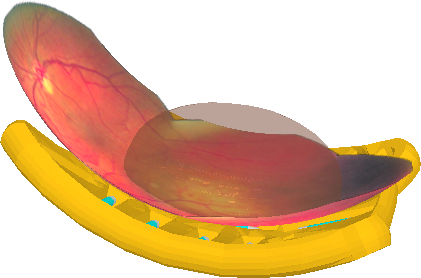

TumorTranslucent
Translucent Dome

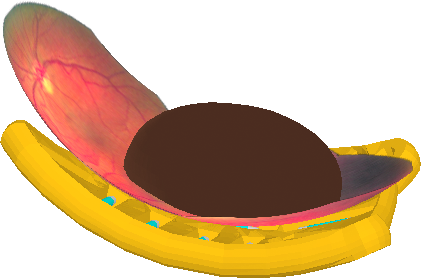

TumorOpaque
Opaque Dome
TumorDome
Textured Dome
TumorEdges
Edges (wireframe) Dome
TumorPeak
Textured Peak
TumorMushroom
Textured Mushroom
