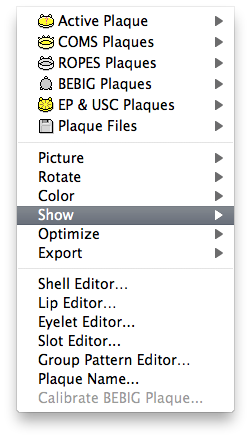

The hierarchical Show menu is accessed from the Plaque menu of the Plaque window.
|
- Slot Edges - Enables display of slot edges.
- Slot Groups - Overlay each source with its group pattern number.
- Slot Index #s - Overlay each source with its slot index number.
- Source Placeholders - Enables display of seed placeholder lines for empty slots.
- Source Polar Coordinates - Overlay each source with the polar coordinates of its center.
- Source Center Coordinates - Overlay each source with the Cartesian coordinates of its center.
- Source End Coordinates - Overlay each source with its end coordinates.
- Plaque Name - Shows the name of the plaque in the window.
- Facet Normals - Draw vectors normal to each triangular facet. Used to debug inside vs outside of enclosed surfaces.
- Bad Triangles - Hilites triangles that do not share edges with exactly 3 other triangles. Used to verify the plaque surface for rapid prototyping.
|
