Plaque Simulator includes predefined models of these BEBIG plaques. |

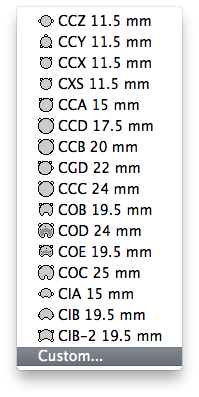

Plaque Simulator includes predefined 3D models of these plaques. The Custom... item opens a dialog in which one can create a new design of BEBIG-style plaque for research purposes. |
|

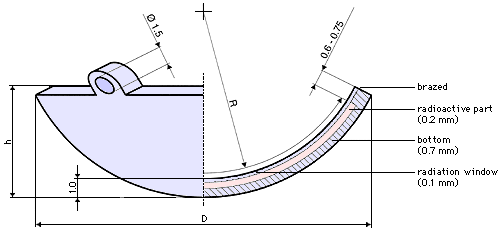

A thin film of Ru-106 is encapsulated within a sheet of pure silver (Ag 99.99), with a total thickness of 1 mm. The plaques are hemispherically shaped with a radius of 12-14 mm. The applicator's surface is polished metal. The plaques have rounded edges, a homogeneous lead seam and eyelets for suturing to the sclera. The window on the concave side is 0.1 mm thick. The rear surface absorbs approximately 95% of the beta radiation. The nominal surface dose rate in the center of the applicators concave side is 720 cGy/hr. The actual surface dose rate and other calibration data are provided on a certificate which comes with the applicator. Inactive dummies made from silvered copper or PMMA are available for all types of applicators. |

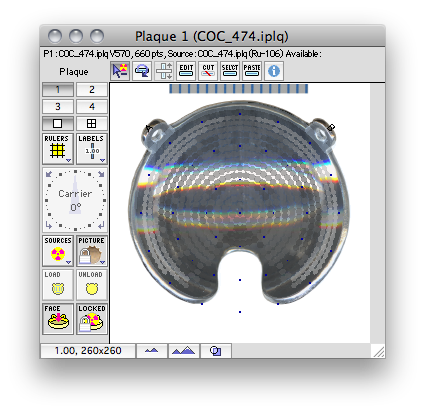

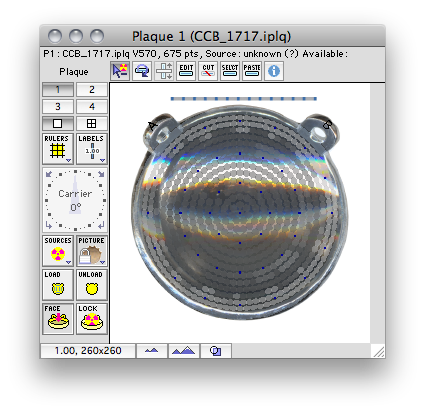

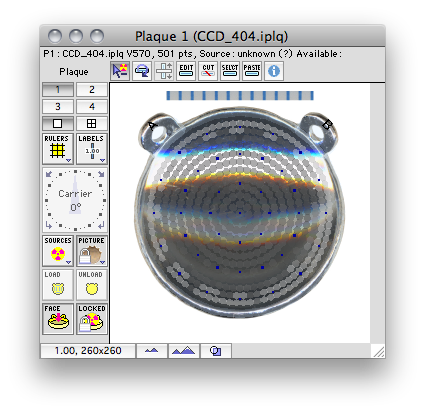

PS also includes example .iplq files with embedded pictures for many of the BEBIG plaques. Click to enlarge. |
|||
