Plot Menu

The Plot menu is added to the menu bar whenever the Dosimetry Window is frontmost. It provides additional control regarding plot and 2D isodose matrix attributes.

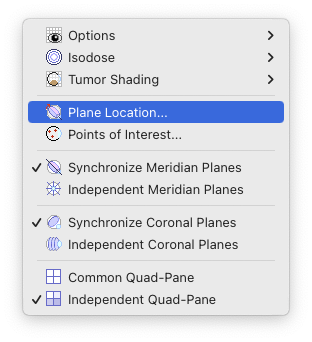

Plot Menu
  • Options enable or disable various aspects of the isodose plot.
  • Isodose choose between cGy, Gy, or no labels.
  • Tumor Shading change the tumor shading intensity.
  • Synchronize Meridian Planes Manually set meridian plane angles are copied to all plaques. Dosimetry plane autotracking overrides synchronization and always assumes independent dosimetry planes for each plaque.
  • Independent Meridian Planes The meridian plane angle must be set independently for each plaque.
  • Synchronize Coronal Planes Manually set coronal plane x-axis offsets are copied to all plaques. Dosimetry plane autotracking overrides synchronization and always assumes independent dosimetry planes for each plaque.
  • Independent Coronal Planes The coronal plane offset must be set independently for each plaque.
  • Common Quad-Pane Changing the context of a layout pane (e.g. meridian, coronal, nerve etc...) changes all panes to that new context.
  • Independent Quad-Pane The context of each layout pane can be set independently. This is the default.
