The Group Pattern Editor
GroupEditor

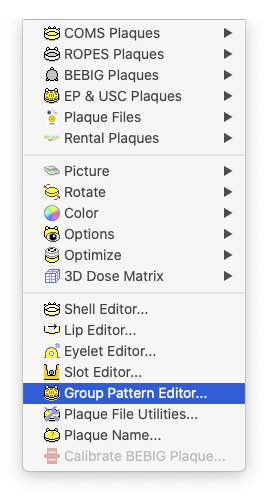

The Group Editor... window allows you to create and delete groups of slots in various patterns. Organizing source slots into groups is useful when symmetry exists within the group such as in COMS style plaques. The slot properties group establishes some default slot related preferences for new slots added to the plaque such as how source placeholders and labels are displayed. All of these parameters can be customized for each slot in the slot editor window.

GroupEditor
  • To delete a group, select the group number from the menu and click Delete.
  • To add a group of slots, select a pattern (e.g. Circular) and then click Add.
