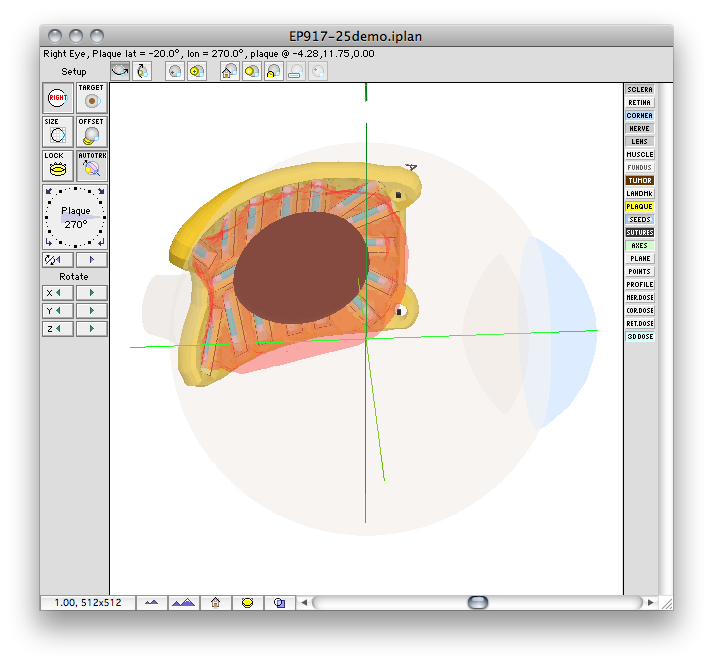

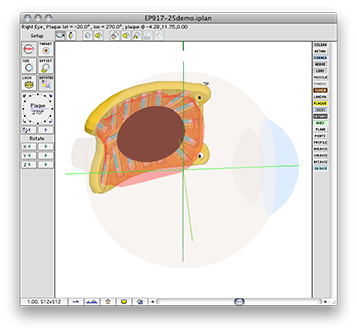

Eye Physics Model 917
16x14mm semi-elliptical with broad notch.

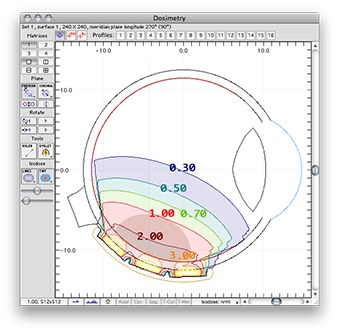

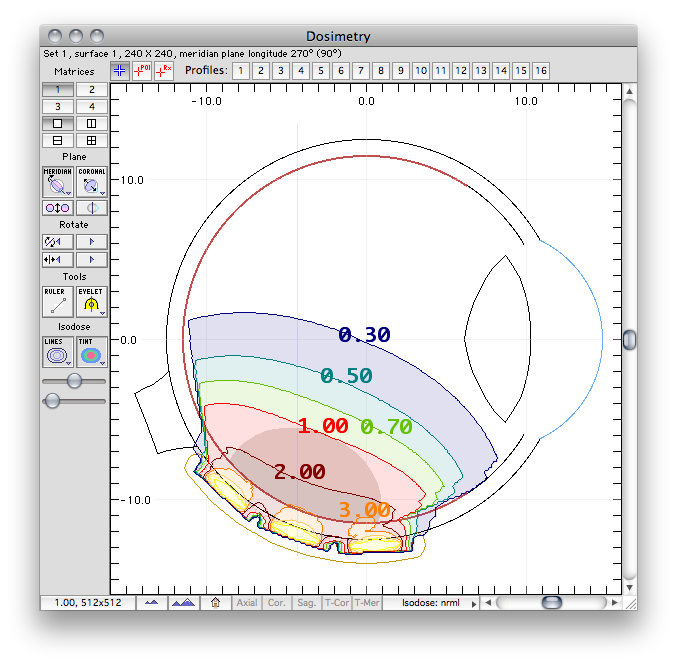

Base coverage at 5mm Rx height: 8x10 tumor + 2mm margin.
1.5 mm thick.
18-K gold alloy.
17 seed positions, 0.8 mm deep slots.

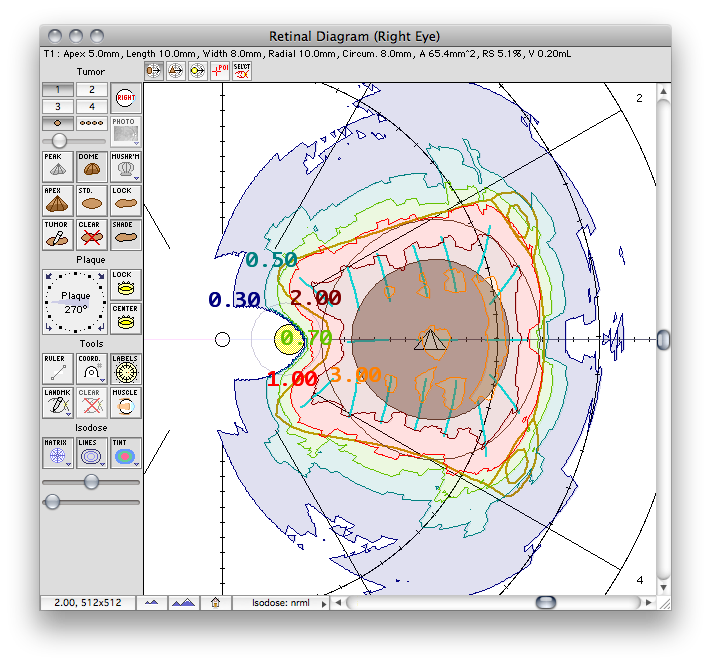

Posterior seed orientation spares macula and optic disc.
Posterior notch facilitates placement adjacent to the optic nerve.
2nd generation design, manually prototyped.
For 25 mm diameter eye.
.
Model 917-24 for 24 mm diameter spherical eye
