Calibrating the BEBIG CCY Plaque

In this tutorial we will create a model of plaque CCY50 from the sample data sheets.

Prepare the eye model
  • BEBIG plaques should be calibrated using an eye model that matches the curvature of the plaque.
  • The curvature of the CCY plaque is designed to fit a 24 mm diameter sphere.
  • At startup, the default PS eye model model is a 24 mm spherical eye.
  • If the current eye model is not a 24 mm diameter spherical eye, from the Setup window click the Size button SizeButton42x42 to open the Eye Size window and set the eye size to a 24 mm diameter sphere by clicking the D=24 mm button.
EyeSize24mm

Step 1
  • Bring the Plaque window to the front.
  • Select plaque #1.
  • The displayed plaque will most likely be whatever your preferred startup plaque is. Whatever plaque is displayed, ignore it! We are going to replace it in the next step.
PlaqueWindow

Step 2
  • From the Plaque menu at the top of the screen, select the BEBIG Plaques item and then the desired model (CCY in this case) from the menu of plaques.
PlaqueBEBIG

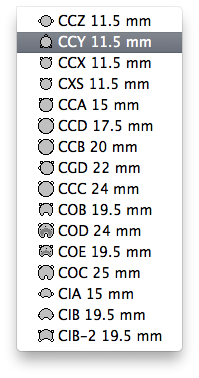

CCY

An empty CCY plaque will appear in the Plaque window.

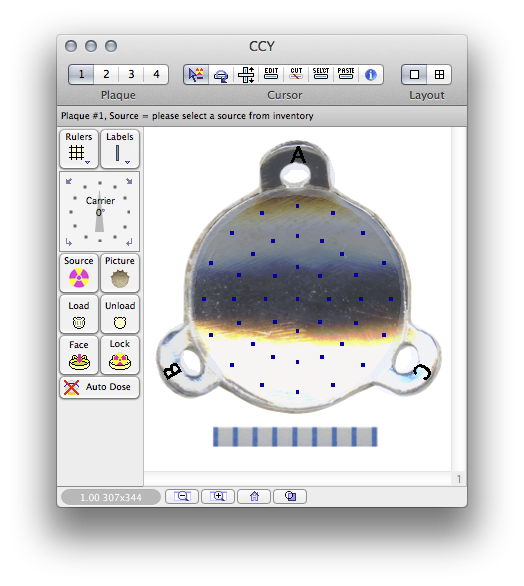

PlaqueWindowCCY

Step 3
CalibrateBEBIG

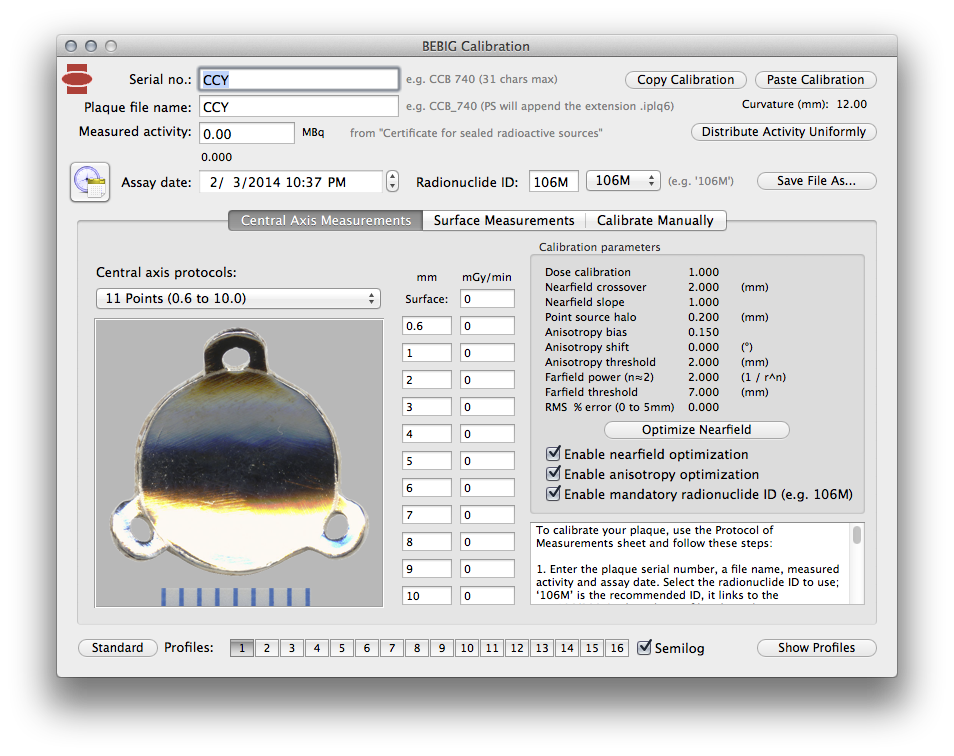

CCY50Calibration1
  • Click the Central Axis Measurements tab if it is not already selected.

Step 4
  • In the BEBIG Calibration window, click the Show Profiles button located near the lower right corner of the window.ShowProfilesCorner
  • This will open the Documents preview window, position the window adjacent to the BEBIG Calibration window, and select the Profile document page.

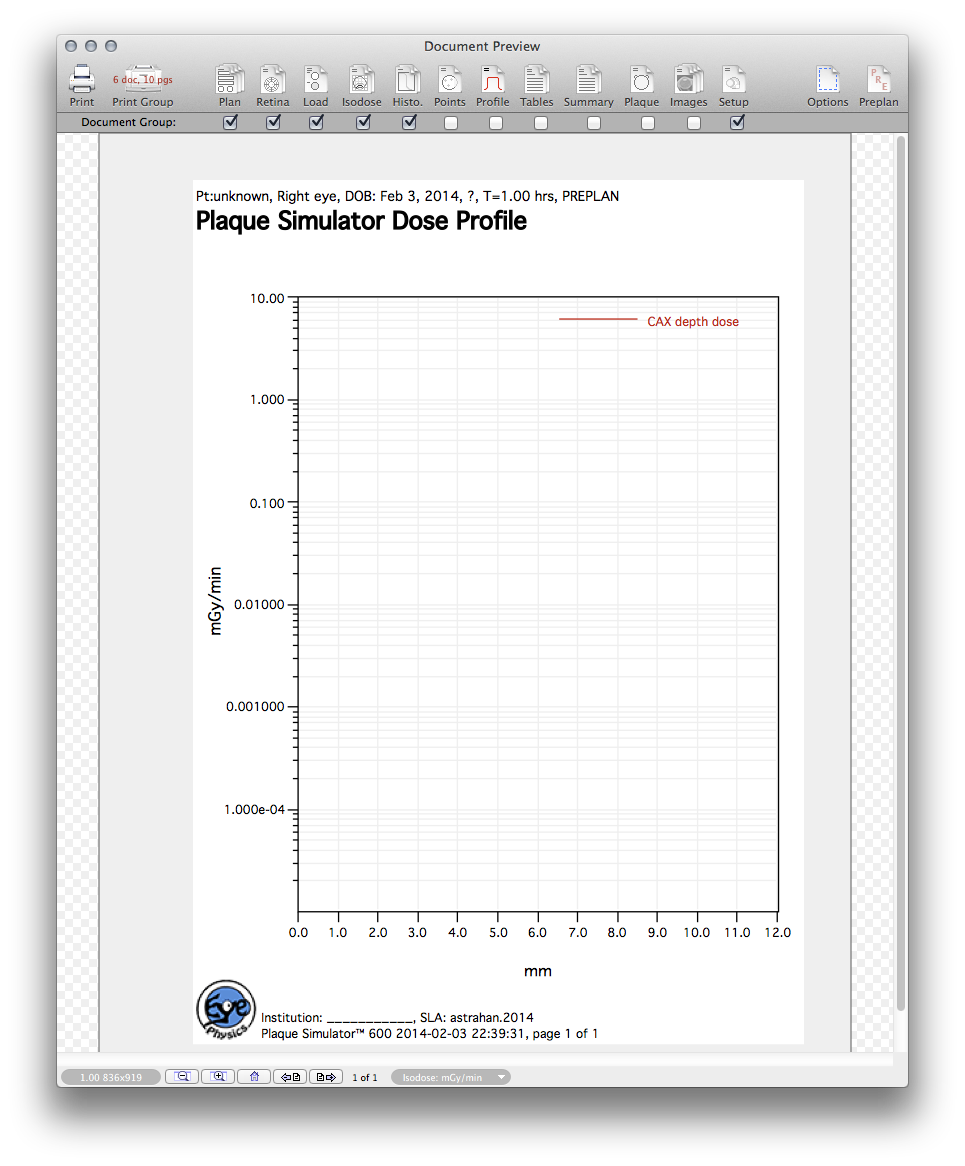

CCY50DoseProfile1

Step 5
  • Enter the Serial no. CCY 50.
  • Enter the Plaque file name CCY_50tutorial (the .iplq6 extension will be added automatically when the file is saved).
  • Enter the Measured activity 6.5 from the Measurements certificate sheet.
  • Enter the Assay date 12/8/2008 12:00 PM.
  • Select Radionuclide ID 106M from the popup menu (the dialog should default to 106M).
  • Select Central axis protocol 11 point (0.6...10.0) from the popup menu (the dialog should default to this).
  • Enter the central axis data from the Measurements protocol sheet.

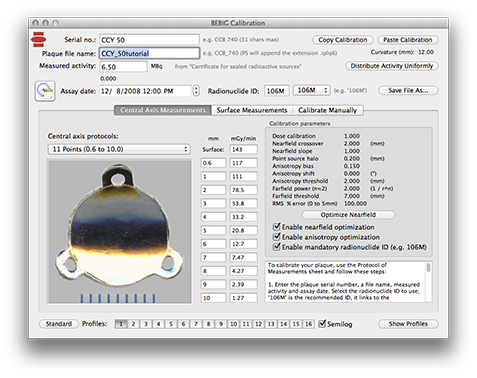

CCY50Calibration2

Step 6
  • Click the Distribute Activity Uniformly button.DistributeUniformlyCorner
  • The uncalibrated dose profile should appear as illustrated.

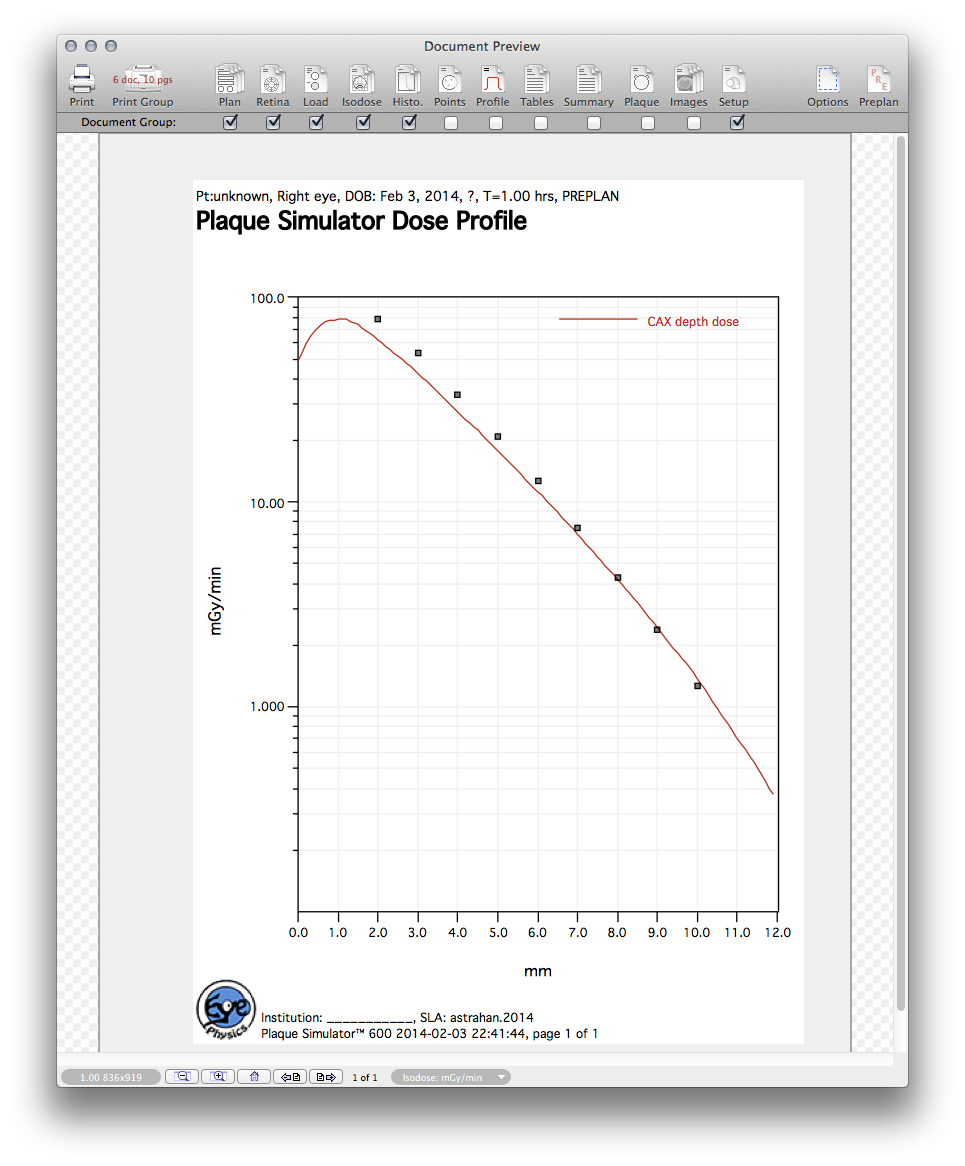

CCY50DoseProfile2

Step 7
  • Click the Optimize Nearfield button.OptimizeNearfieldGroup
  • A progress dialog will appear.
CCY50OptimizeNearfieldProgress

Step 8

When the nearfield optimization is complete the dialog and dose profile will look like this:

CCY50Calibration3

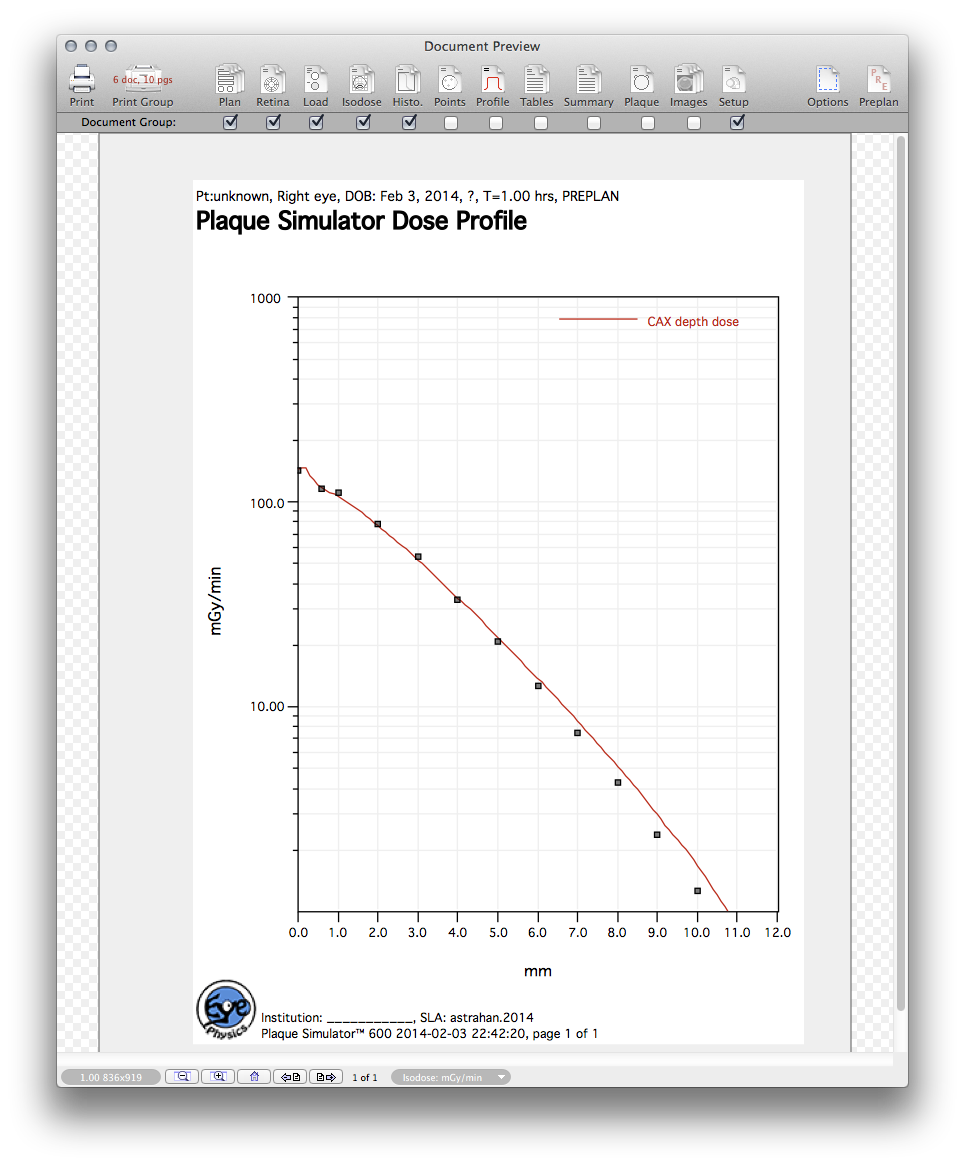

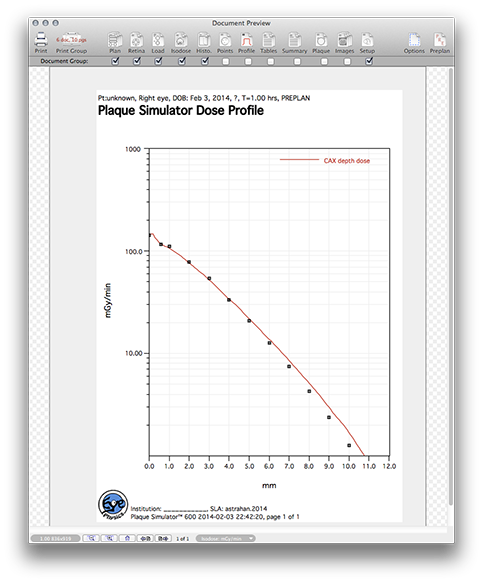

CCY50DoseProfile3
