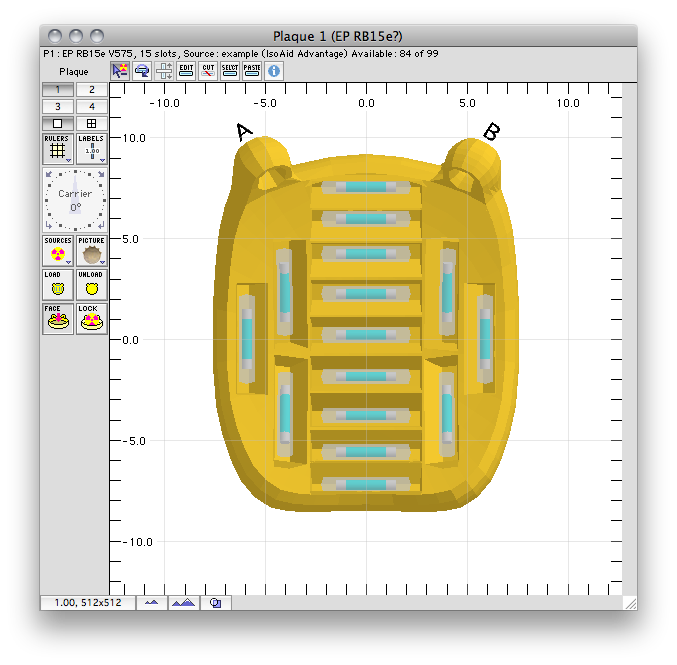

Eye Physics Model RB15e
18x16 semi-elliptical.

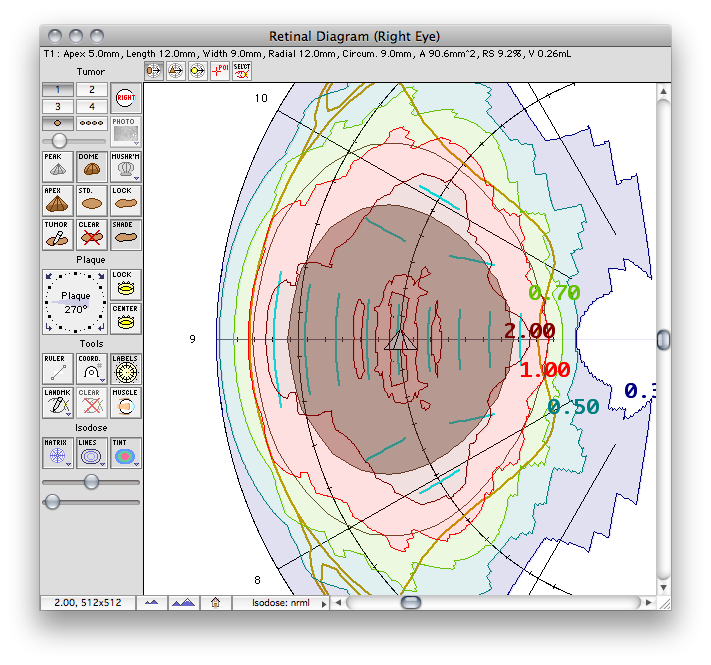

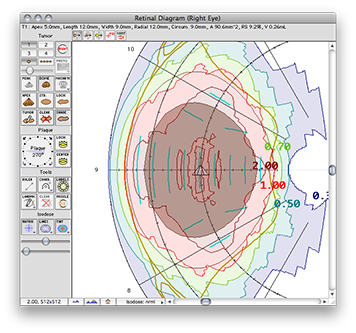

Base coverage at 5mm Rx height: 12x9 tumor + 2mm margin.
2 mm thick.
18-K gold alloy.
15 seed positions.
Posterior seed orientation spares macula and optic disc.
3rd generation design, rapid prototyped.
For 22 mm diameter (baby) eye.
.
Model RB15e-22 for 24 mm diameter spherical eye
