Eye Physics Model 2440n


PlaqueEP
PlaqueEP2440n

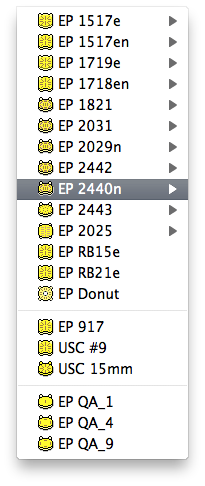

EP2440nmenu
  • 24 mm diameter.
  • Base coverage at 7mm Rx height: 16x17mm elliptical tumor + 2mm margin.
  • 2 mm thick.
  • 18-K gold alloy.
  • 40 seed positions.
  • Posterior notch facilitates placement adjacent to the optic nerve.
  • Seeds become progressively shallower with distance from the center of the plaque to improve dose homogeneity at the edges of the plaque.
  • For 22 to 26 mm diameter eyes.

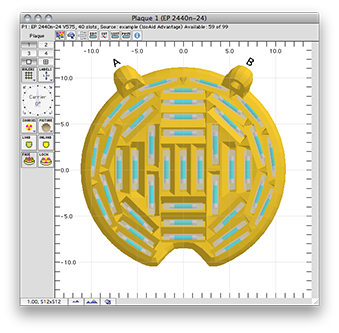

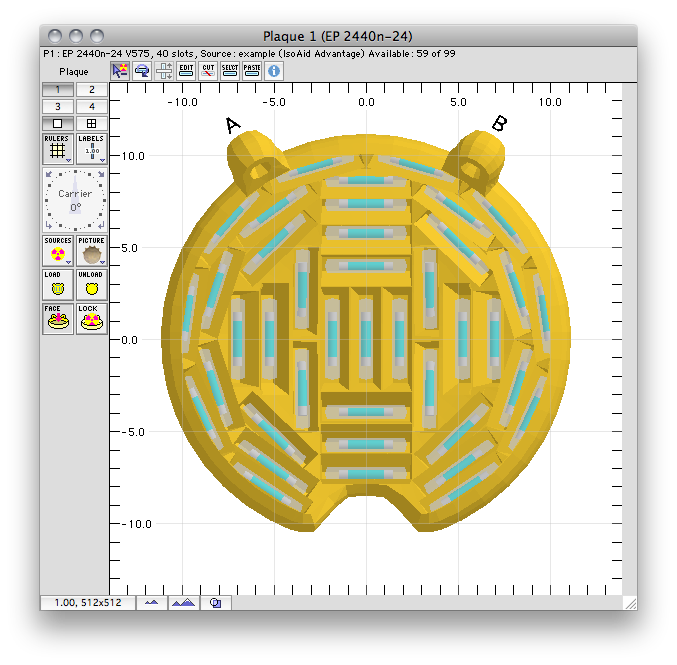

EP2440n-24Loading

.


Model 2440n-24 for 24 mm diameter spherical eye

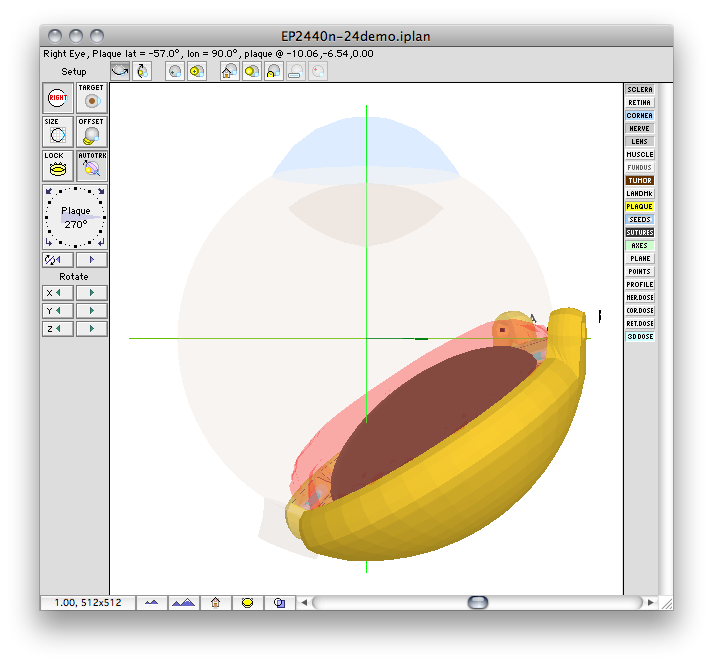

EP2440n-24Setup

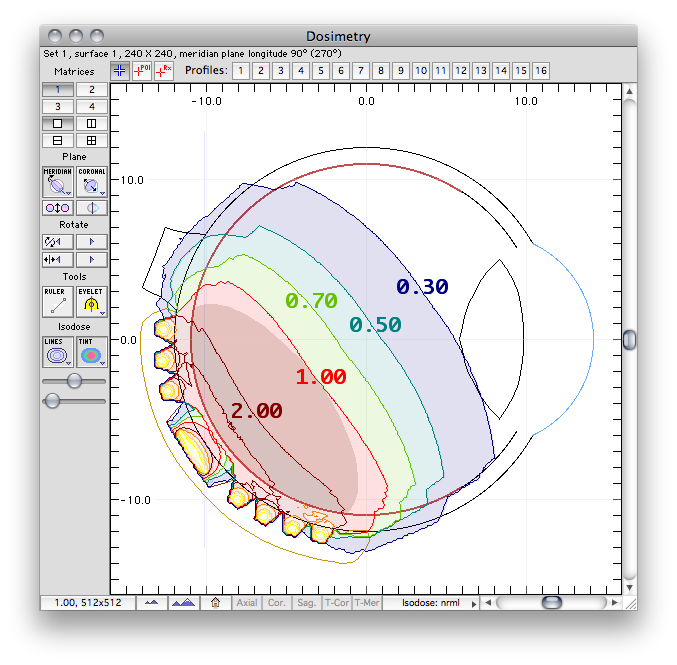

EP2440n-24Meridian

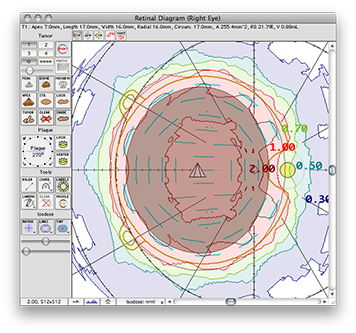

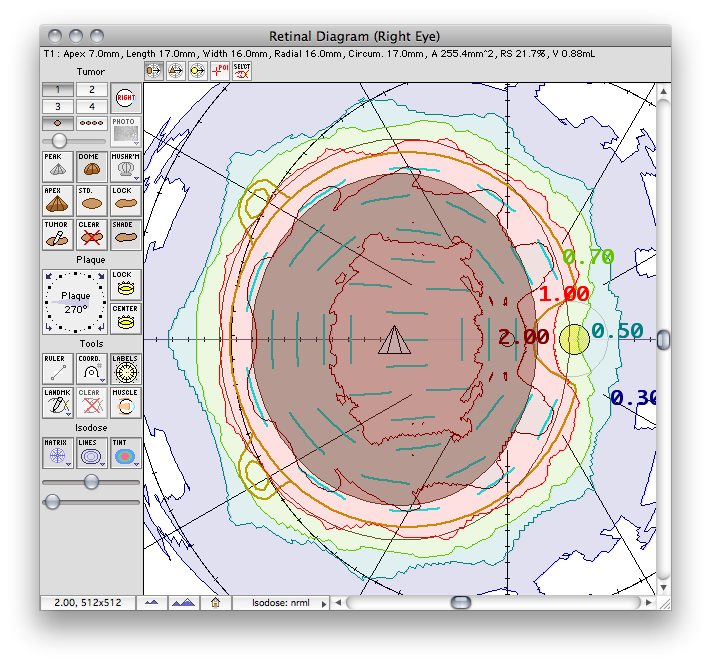

EP2440n-24Retina
