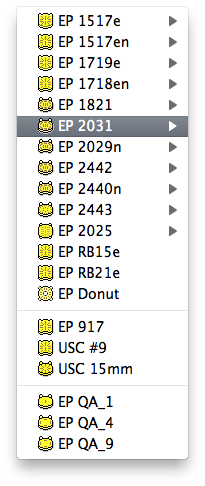

Eye Physics Model 2031
20 mm diameter.
Base coverage at 5mm Rx height: 14mm diameter tumor + 2mm margin.
2 mm thick.
18-K gold alloy.
31 seed positions.
Seeds become progressively shallower with distance from the center of the plaque to improve dose homogeneity at the edges of the plaque.
For 22 to 26 mm diameter eyes.
.

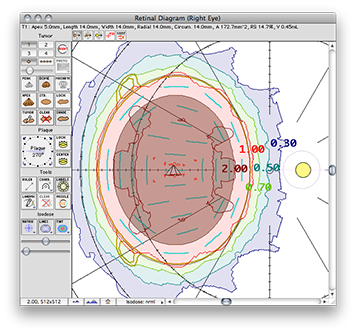

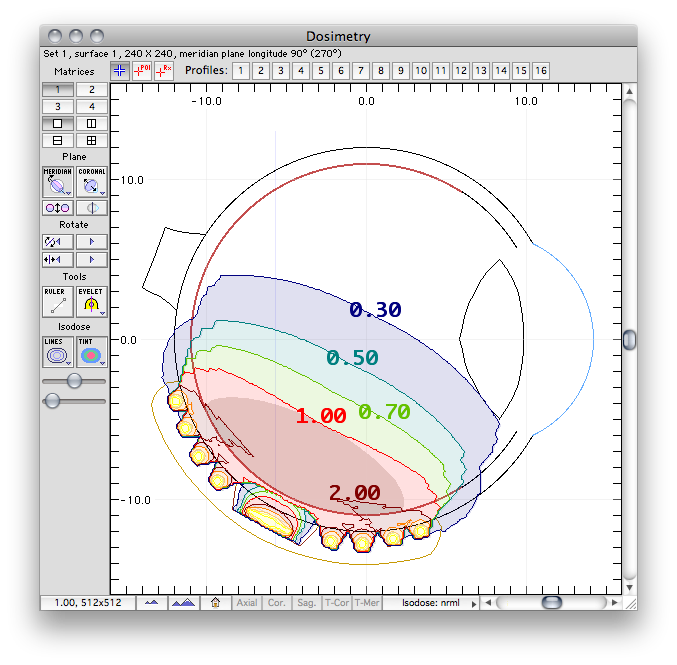

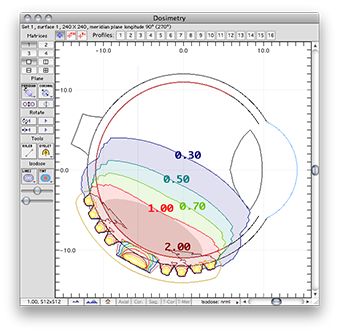

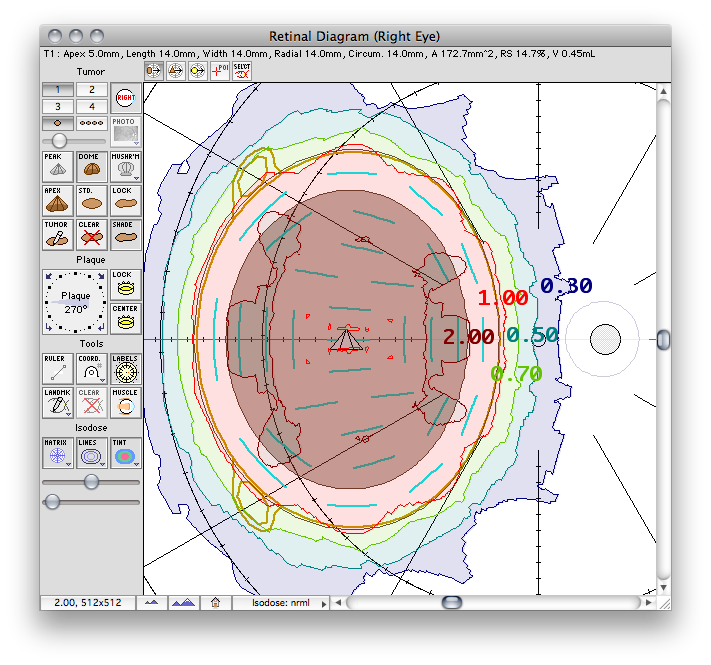

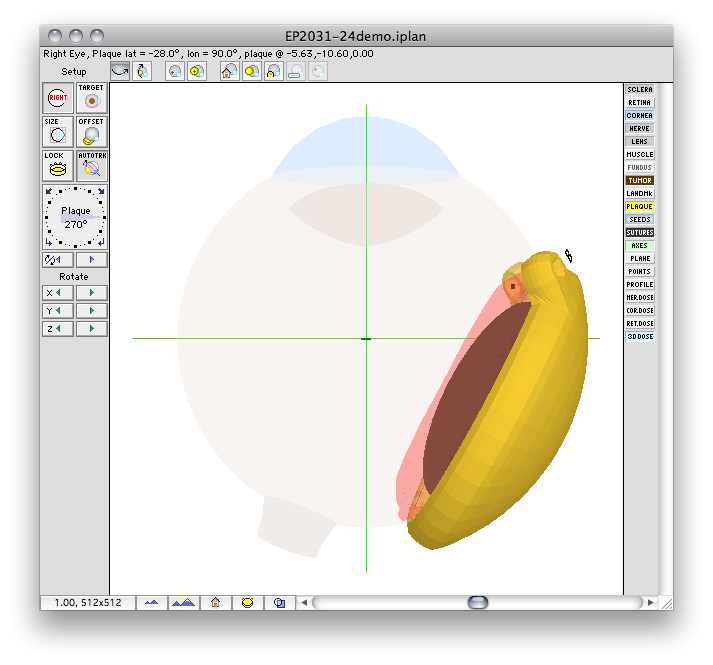

Model 2031-24 for 24 mm diameter spherical eye
