Eye Physics Model 2025
20x20 mm semi-rectangular.
Base coverage at 7mm Rx height: 13x15mm elliptical tumor + 2mm margin.
Base coverage at 5mm Rx height: 12 mm diameter tumor + 2mm margin.
2.2 mm thick.
18-K gold alloy.

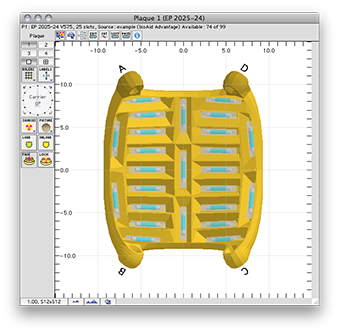

25 seed positions.
Semi-rectangular seed orientation and deep slots can provide strong sparing of the macula and optic disc.
Seeds are slightly shallower near the edges of the plaque to improve dose homogeneity out to the edges of the plaque.
For 24 to 26 mm diameter eyes.
.

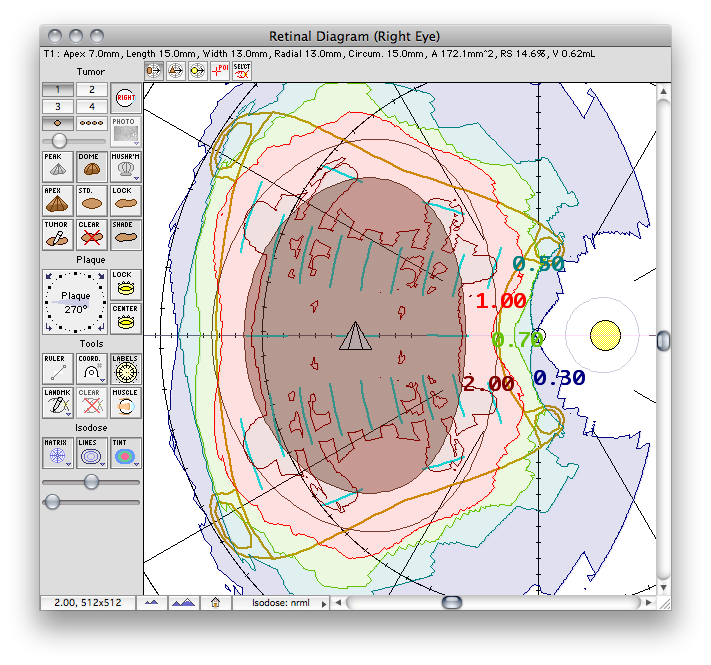

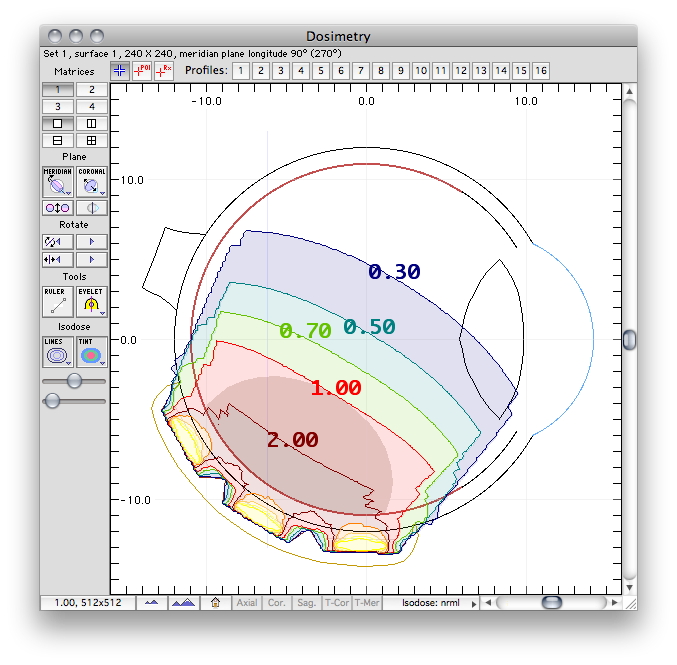

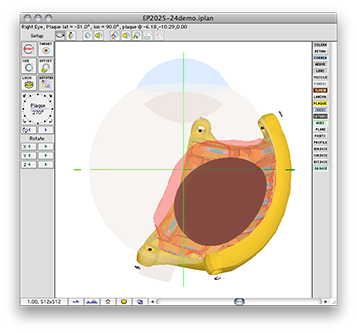

Model 2025-24 orientation for posterior tumor in 24 mm diameter eye

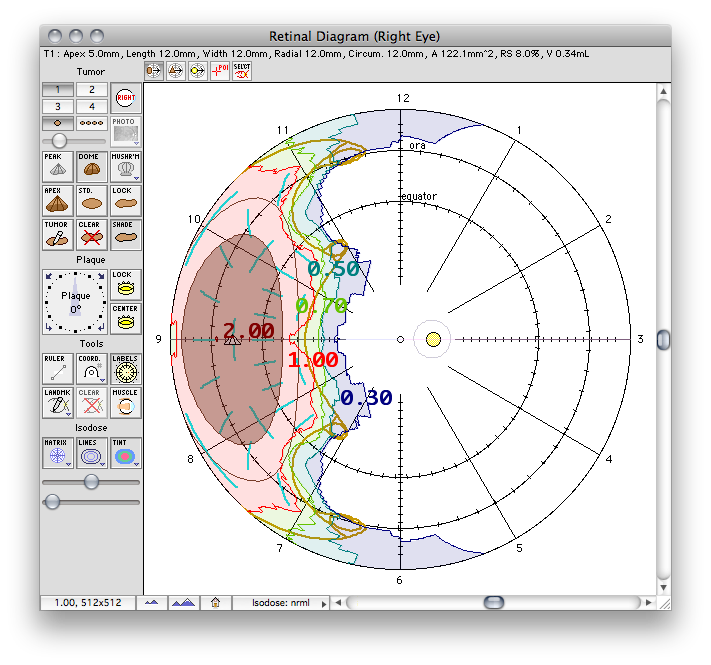

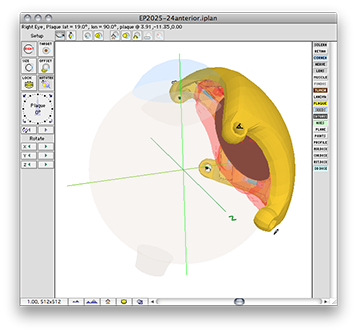

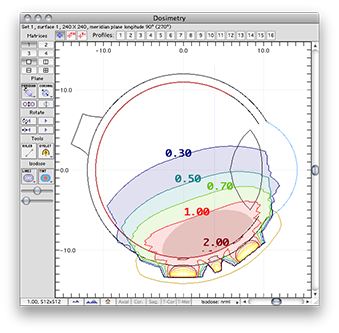

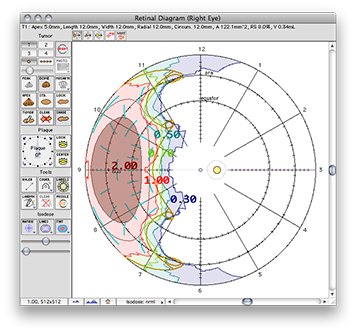

Model 2025-24 rotated 90 deg. for anterior (e.g. ciliary) tumor
