Eye Physics Model 1517e
20x15mm semi-elliptical.
Base coverage at 5mm Rx height: 14x10 tumor + 2mm margin.
2 mm thick.
18-K gold alloy.

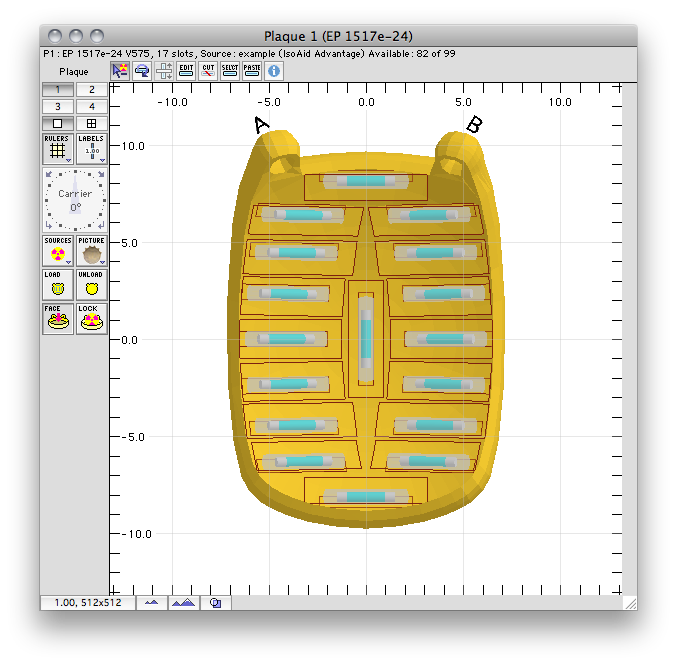

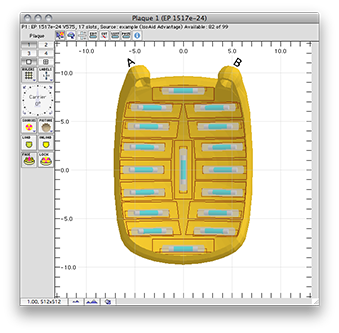

17 seed positions.
Seeds become progressively shallower with distance from the center of the plaque to improve dose homogeneity at the edges of the plaque.
Posterior seed arrangement designed to spare the macula.

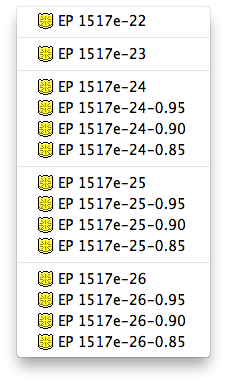

For 22 to 26 mm diameter eyes.
.

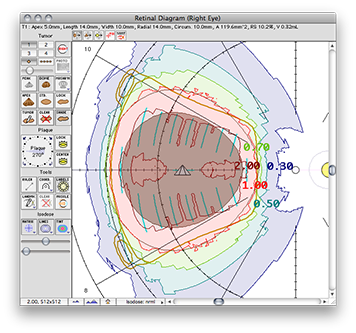

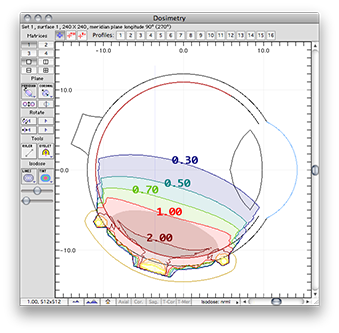

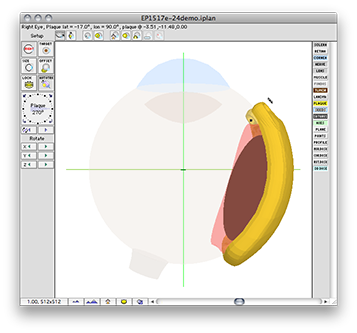

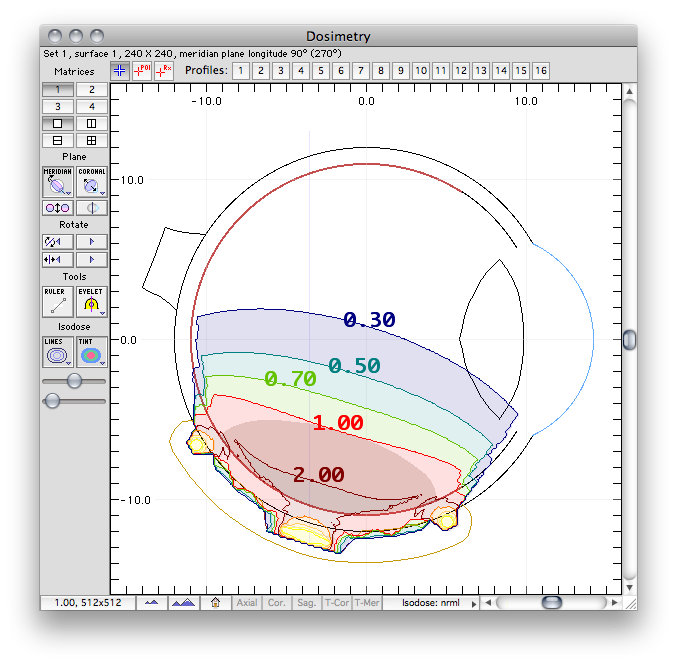

Model 1517e-24 for 24 mm diameter spherical eye
